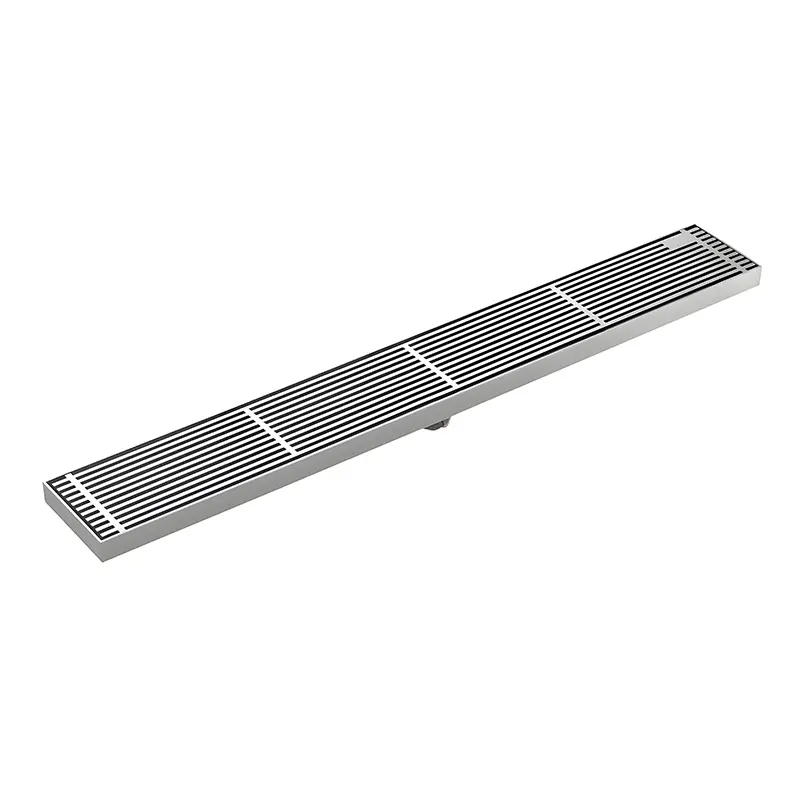

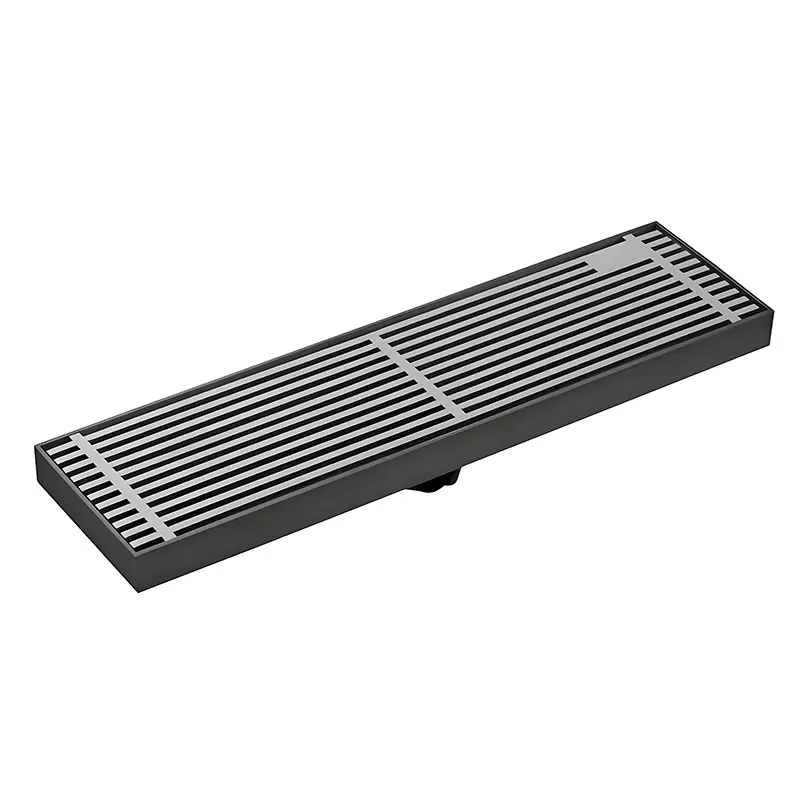

Custom Customizable Linear Drainage Stainless Steel Shower Drains Supplier, Factory

Our customizable linear drainage systems revolutionize bathroom design by combining superior functionality with architectural elegance. These premium-grade shower drains feature innovative engineering that ensures optimal water flow while maintaining a sleek, minimalist profile. Designed for both residential and commercial applications, our linear drains transform shower spaces into seamless wet areas with improved accessibility and modern aesthetics.

Customization Options:
✓ Grate Patterns: Slot, round hole, or decorative designs
✓ Surface Finishes: Brushed, polished, matte, or PVD coatings
✓ Drain Positions: Center, end, or dual-outlet configurations
✓ Color Matching: Available for all RAL color standards
✓ Logo Engraving: Custom branding available for commercial projects

Send Inquiry

Product Description

Key Features

True linear drainage technology prevents water pooling

Anti-clog slot design (3-8mm adjustable openings)

Integrated odor trap prevents sewer gas backflow

Modular design allows for field adjustments

Silent drainage technology with noise-reducing channels

100% leak-proof membrane flange system

Technical Specifications

Materials	Body: 304 stainless steel/ Brass (optional) Grating: Stainless steel (perforated/slotted), ABS polymer (anti-slip)
Surface Treatment	Brushed, polished, PVD-Coated (color customization)
Seal	Silicone gasket (watertight)
Standard Lengths	500mm / 800mm / 1000mm / 1200mm (customizable up to 2000mm)
Channel Width	30mm / 50mm / 80mm (low-profile or high-flow options)
Depth	40–100mm (adjustable to floor structure)
Flow Rate	Up to 0.5–1.2 L/s (depends on slope and model)
Outlet Options	50mm / 75mm / 110mm PVC/Waste Pipe (horizontal or vertical)
Customized Supported	LOGO/ Material/ Size/ Surface Treatment/ Thickness/ Other Accessories

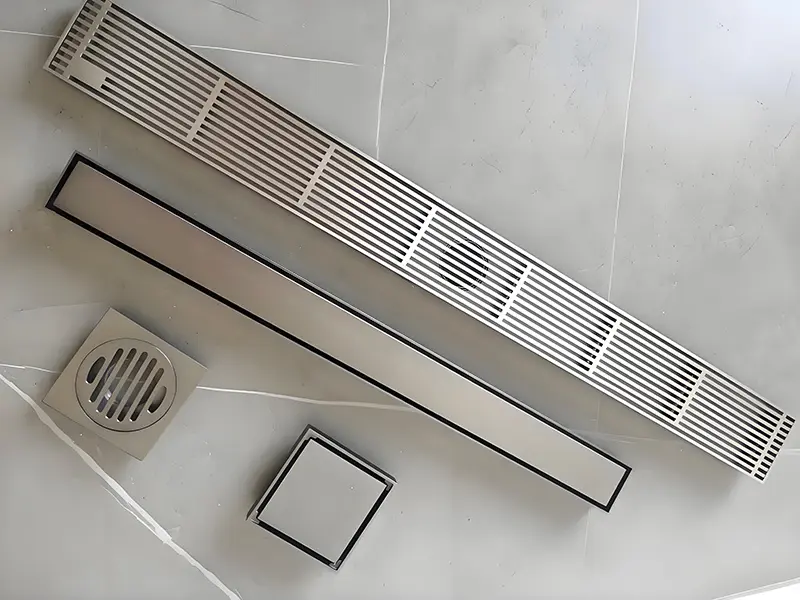

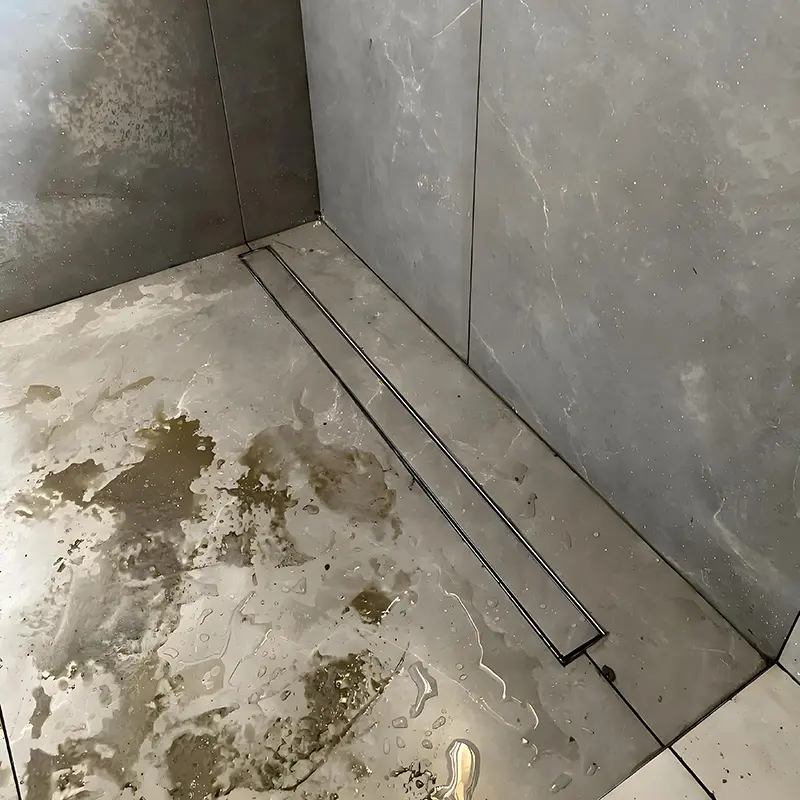

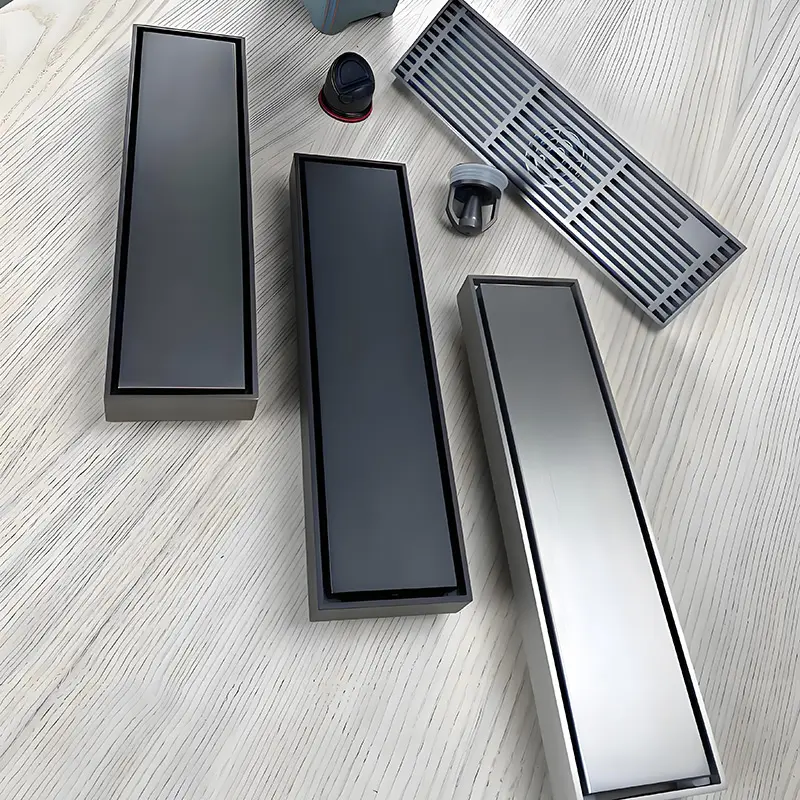

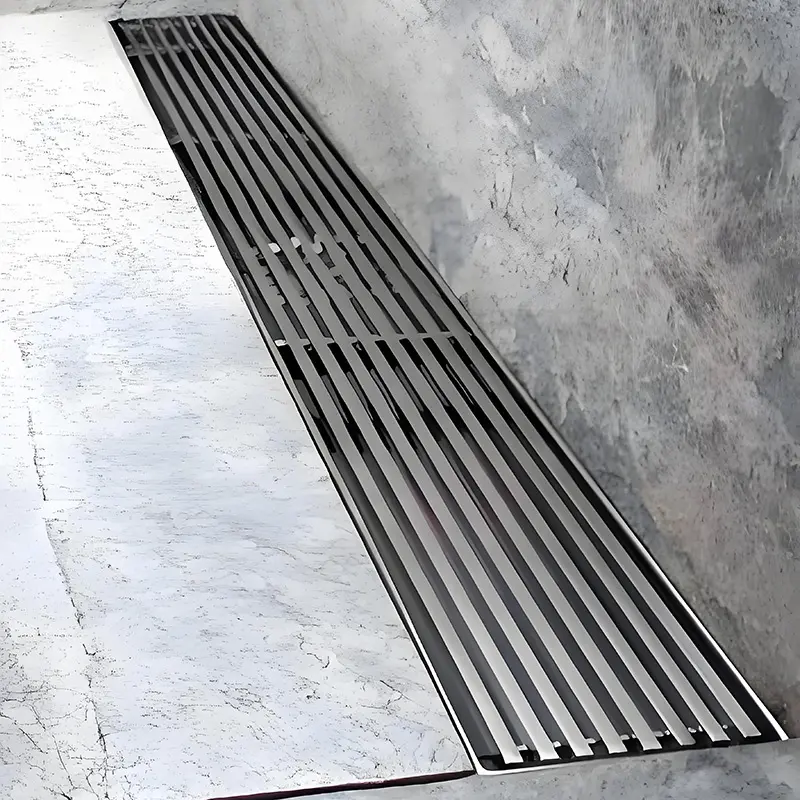

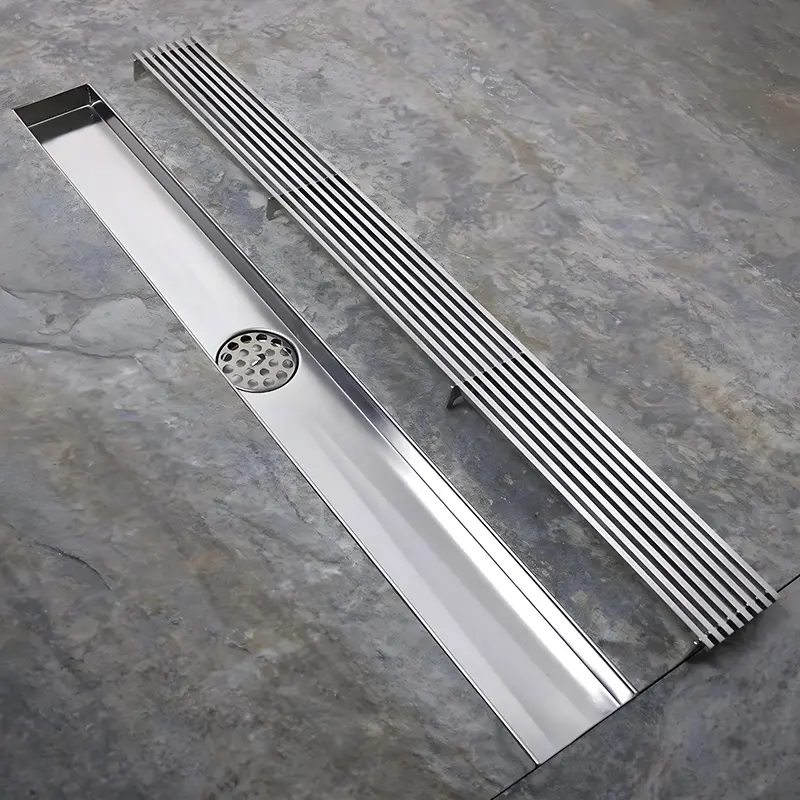

Product Display

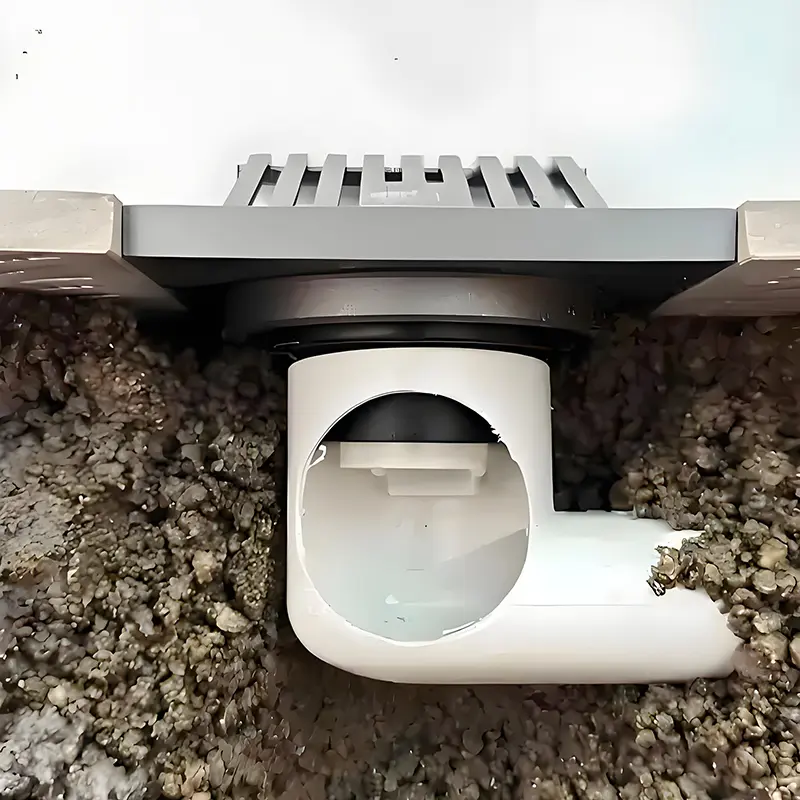

Installation System

Compatible with all waterproofing membranes

Adjustable height mechanism (15-50mm)

Pre-sloped channel requires no additional grading

Tile-in flange for seamless integration

Includes universal P-trap adapter

Premium Package Contents

Main drainage channel with selected finish

Grate cover with anti-slip surface

All necessary mounting hardware

Silicone sealing kit

Detailed installation manual

Template for precise cutting

Maintenance & Warranty

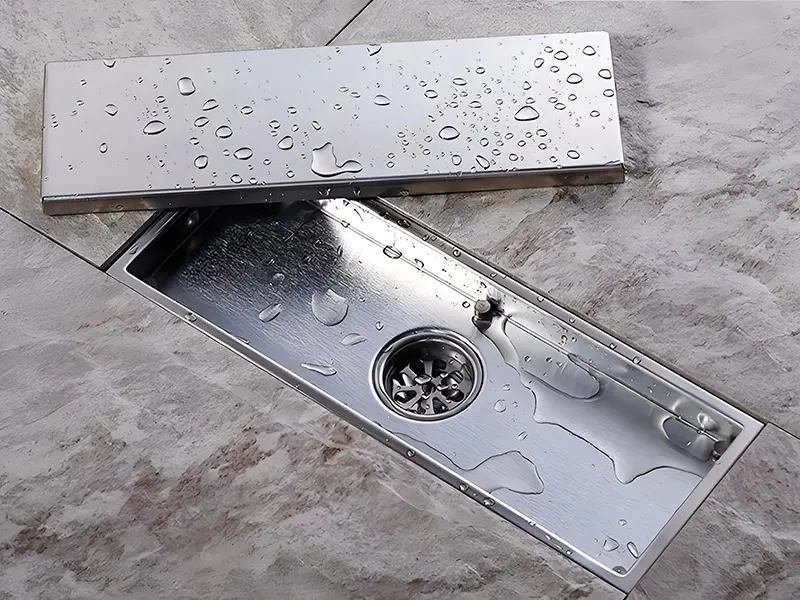

Tool-free grate removal for easy cleaning

Chemical-resistant surfaces

10-year structural warranty

5-year finish guarantee

Lifetime technical support

Frequently Asked Questions

What materials are used to construct the linear floor drain?

The body is constructed from high-grade 304 stainless steel or optional brass. The grating features customizable options including stainless steel (perforated or slotted) and slip-resistant ABS polymer.

What is the typical drainage flow rate of the system?

The system supports a high flow rate of up to 0.5 to 1.2 liters per second (L/s), depending on the specific model, installation slope, and selected waste pipe.

How is the installation height adjusted for different floor structures?

The linear drain features an integrated adjustable height mechanism ranging from 15mm to 50mm, enabling seamless alignment with varying tile thicknesses and floor build-ups.

Does this linear drain prevent bad odors and backflow from the sewer?

Yes, the system is designed with an integrated odor trap system specifically engineered to prevent sewer gases and unpleasant odors from backing up into your bathroom space.

Is the grate easy to remove and clean?

Absolutely. The linear drain utilizes a tool-free grate removal design, making routine maintenance and cleaning of hair and debris straightforward and hassle-free.
